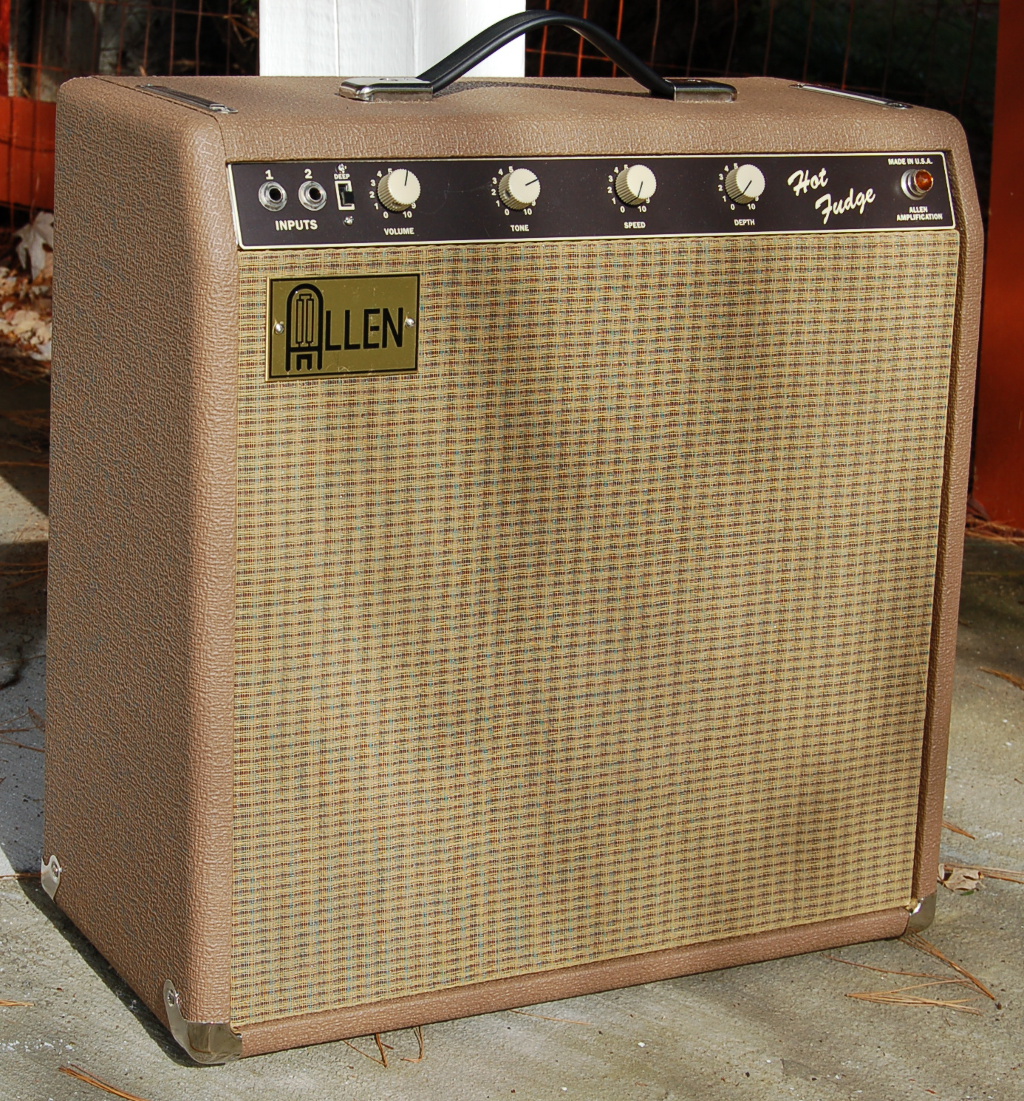

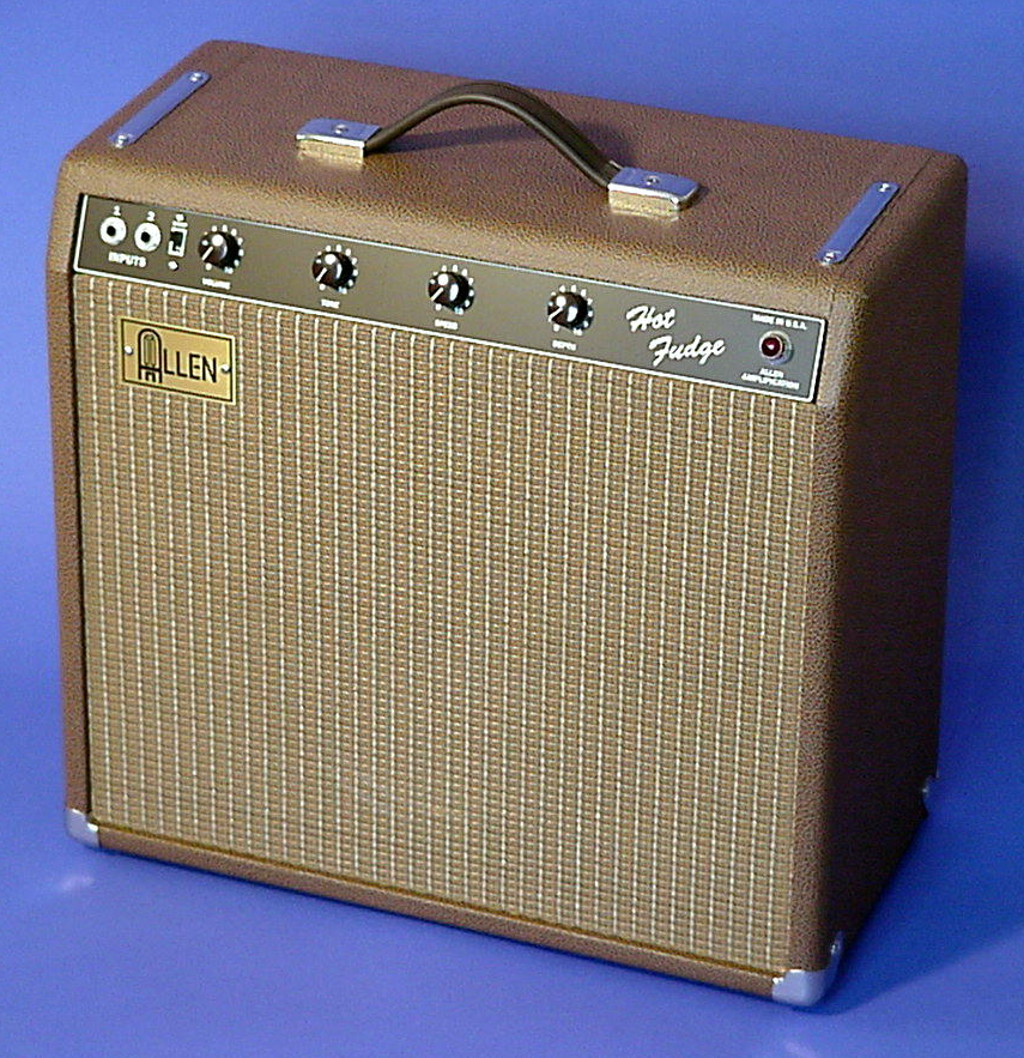

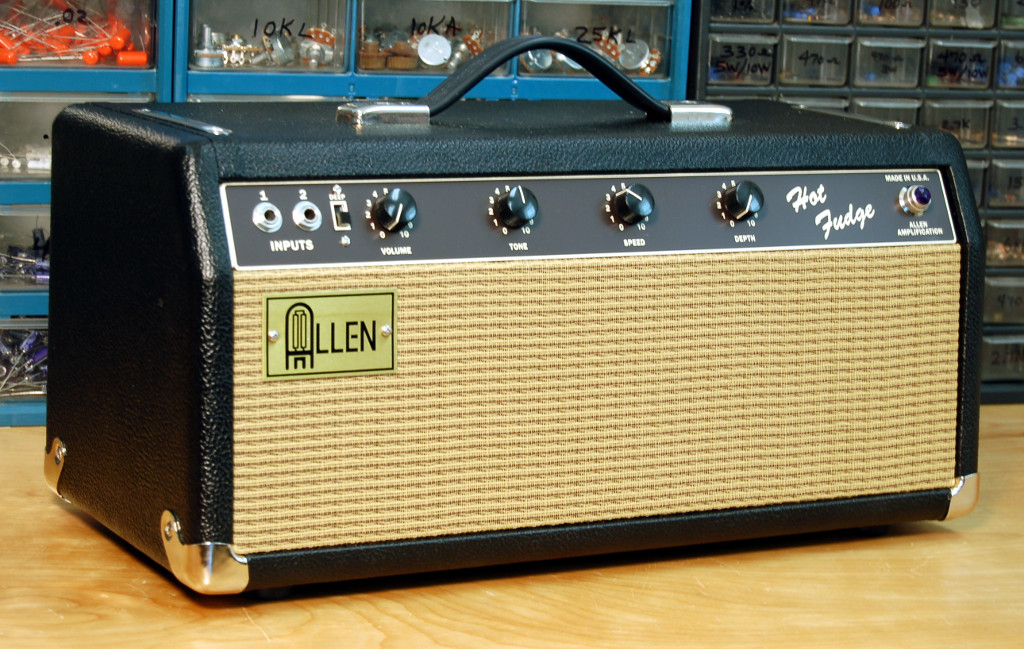

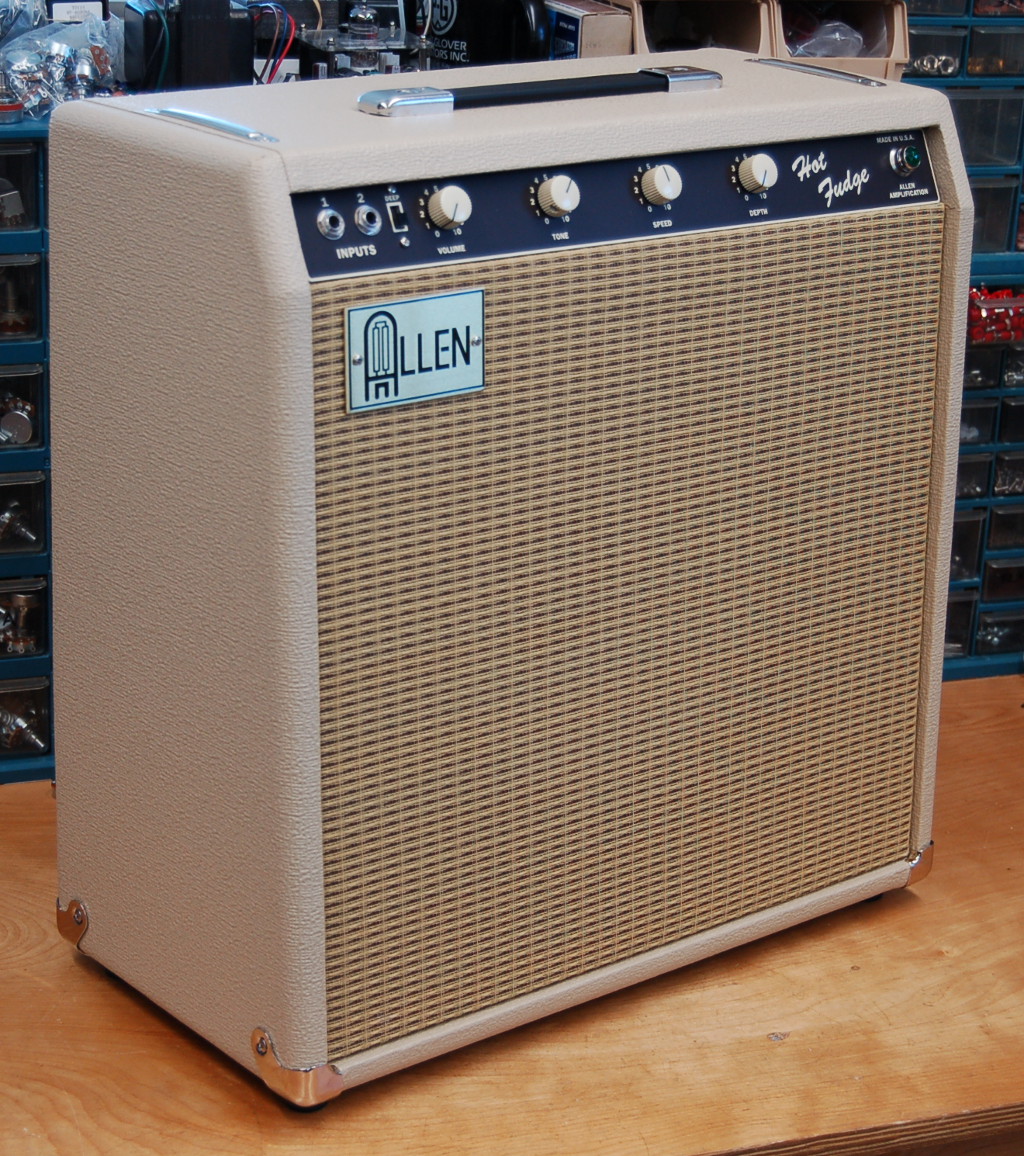

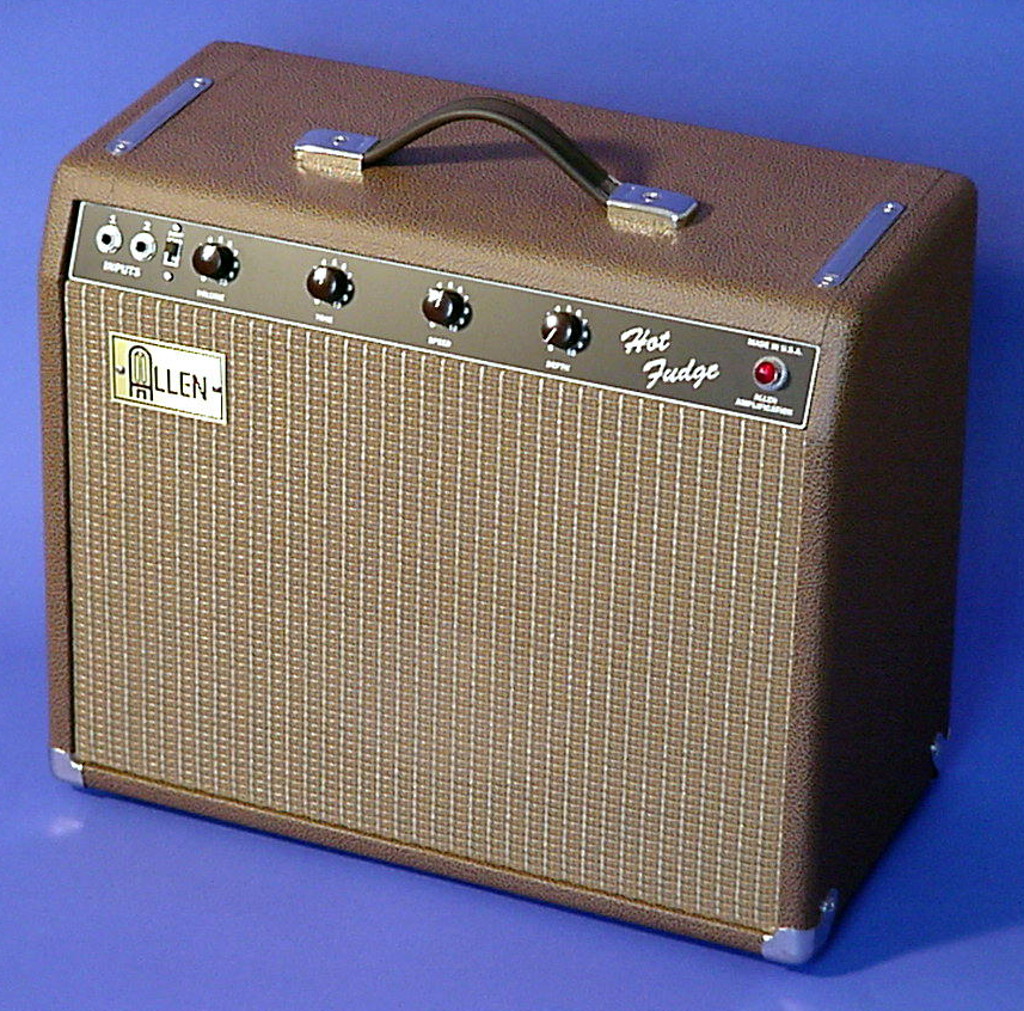

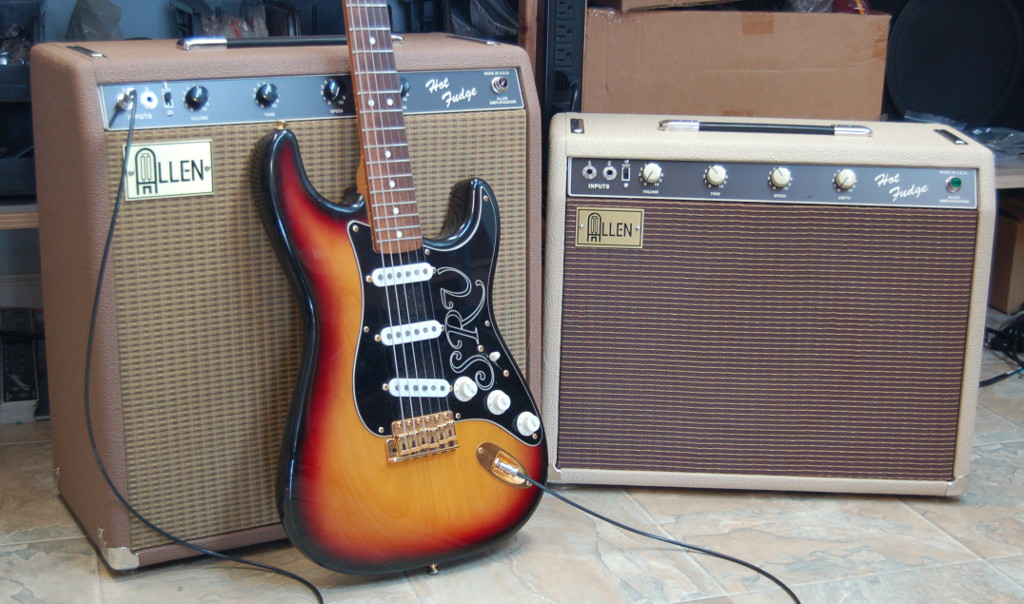

Hot Fudge

20W/35W Hot Fudge w/Nuts - bias mod vibrato, volume, tone, depth controls.

Specifications

Output Power	Hot Fudge 1x10 - 15W (6V6s). Hot Fudge w/Nuts 1x12 - 20W (6V6s) or 35W (6L6s or EL34s).
Tube Complement	Hot Fudge 1x10 - GZ34, (2)-6V6 or 6L6, (2)-12AX7. Hot Fudge w/Nuts 1x12 - GZ34, (2)-6V6, 6L6 or EL34, (3)-12AX7.
Class	AB push-pull with adjustable fixed bias.
Equalization	Single TONE control plus DEEP switch.
Vibrato/Tremolo	Power tube bias modulation type vibrato (no opticoupler) with all tube circuitry.
Chassis	Aluminum chassis.
Circuitry	Hand-wired point-to-point with tinned solid-core PVC wiring, G-10 glass epoxy circuit board with brass eyelets. Carbon film resistors, Mallory M150 and CDM silver mica tone capacitors, Switchcraft jacks, Carling switches, and U.S. made molded type sockets.
Topology	Hot Fudge 1x10 is 6G2 (brown Princeton™) inspired but enhanced with DEEP switch, adjustable fixed bias with measurement jacks and bigger transformers. Hot Fudge w/Nuts 1x12 is 6G3 (brown Deluxe™) inspired (long tailed pair phase inverter) but with 6G11 (brown Vibrolux™) vibrato plus all of the above mentioned enhancements.
Cabinet	Finger-jointed pine with British Cocoa Tolex and Custom Brown grill cloth. Rear screw-on back panels, rubber feet, steel reinforced rubber strap handle with chrome caps and bottom chrome corners. Brushed brass logo and black or cream barrel knobs.
Speaker(s)	Hot Fudge 1x10 - Eminence Copperhead 10". Hot Fudge w/Nuts 1x12 - Eminence Red, White and Blues 1x12.
Special Features	Deep switch adds a 50uf cathode bypass capacitor in parallel with the .68uf capacitor for the first gain stage. The 50uf cap is more Fenderish while the .68uf is more Marshall like. Rear bias measurement jacks plus adjustment pot for easy biasing with a voltmeter. Extension speaker jack. Choke filtered power supply. Aluminum chassis is non magnetic for quieter operation and will never rust.
