Encore

22W/35W Encore with bias mod vibrato, 2-knob reverb and master vol.

Specifications

Output Power	22W with 6V6s, 35W with 6L6s using a plug-in solid-state rectifier.
Tube Complement	(1) 5AR4, (2) 6L6s and (5) 12AX7s (or 5Y3GT with 2 6V6s).
Class	AB push-pull with adjustable fixed bias.
Equalization	Bass, Treble and Midrange controls, BRIGHT switch and RAW control.
Reverb	All-tube, long 3-spring medium-delay tank in a heavy vinyl reverb bag with MIX and TONE controls, shielded cables.
Master Volume	Post-driver using dual potentiometer and (4) coupling capacitors.
Vibrato/Tremolo	Brown Vibrolux™ tremolo (bias modulation type, non-opticoupler tube tremolo).
Chassis	Stainless-steel angled-front chassis with welded corners.
Circuitry	Hand-wired point-to-point with tinned solid-core PVC wiring, G-10 glass epoxy circuit board with brass eyelets. Carbon film resistors, Mallory M150 and CDM silver mica tone capacitors, Switchcraft jacks, Carling switches, and U.S. made molded type sockets.
Topology	Design is loosely based on the mid 60s Fender Vibrolux Reverb™ but without a normal channel. Design is enhanced with 2-knob reverb, non-opticoupler tube tremolo, master volume control, middle control, RAW control, rear-panel bias measurement jacks, impedance switch, and front-panel power switches.

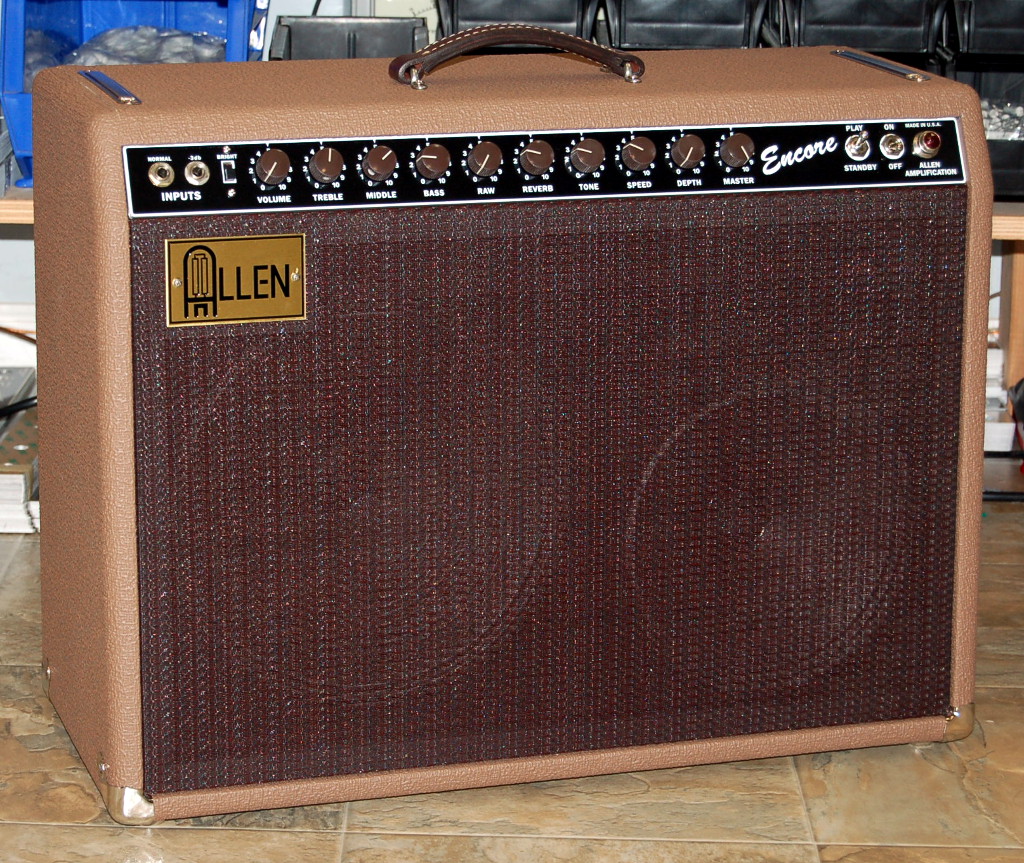

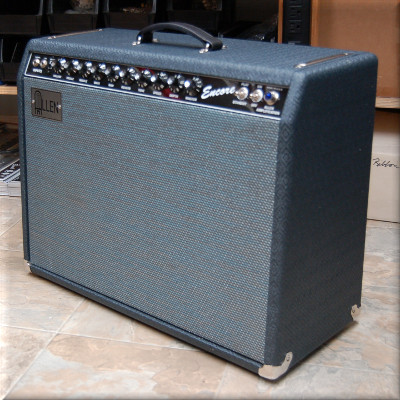

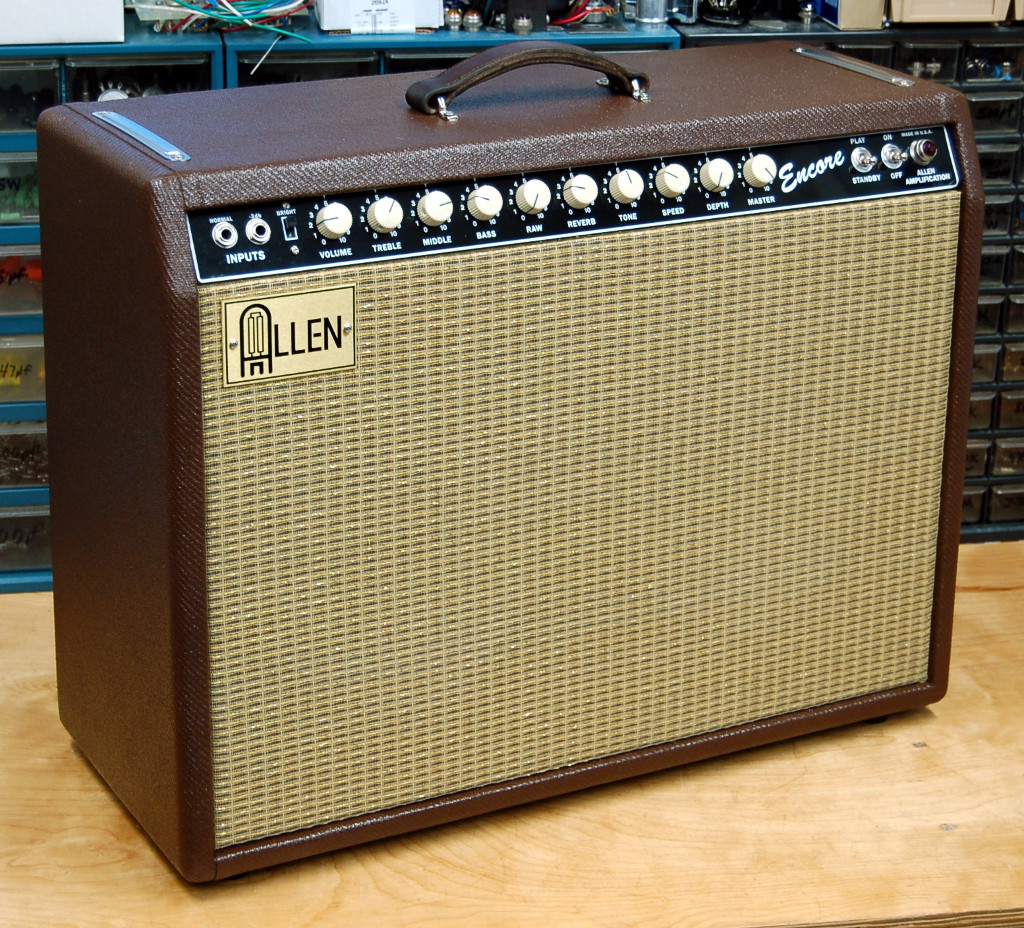

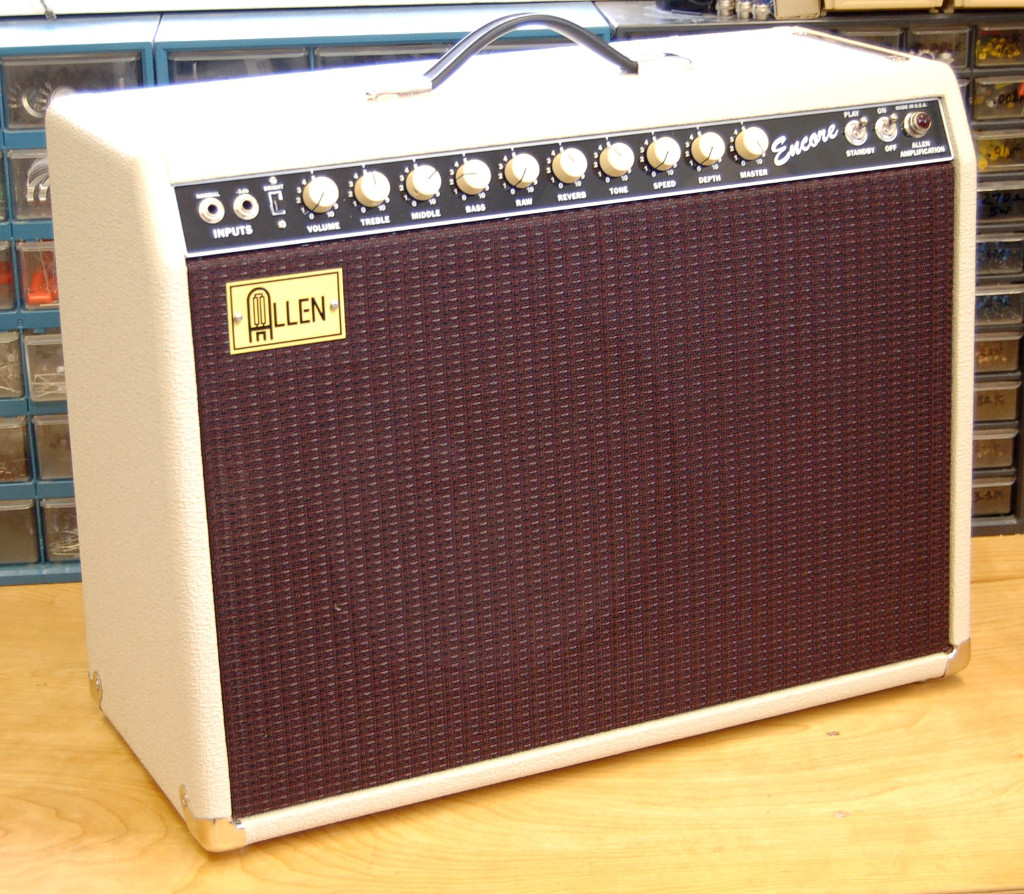

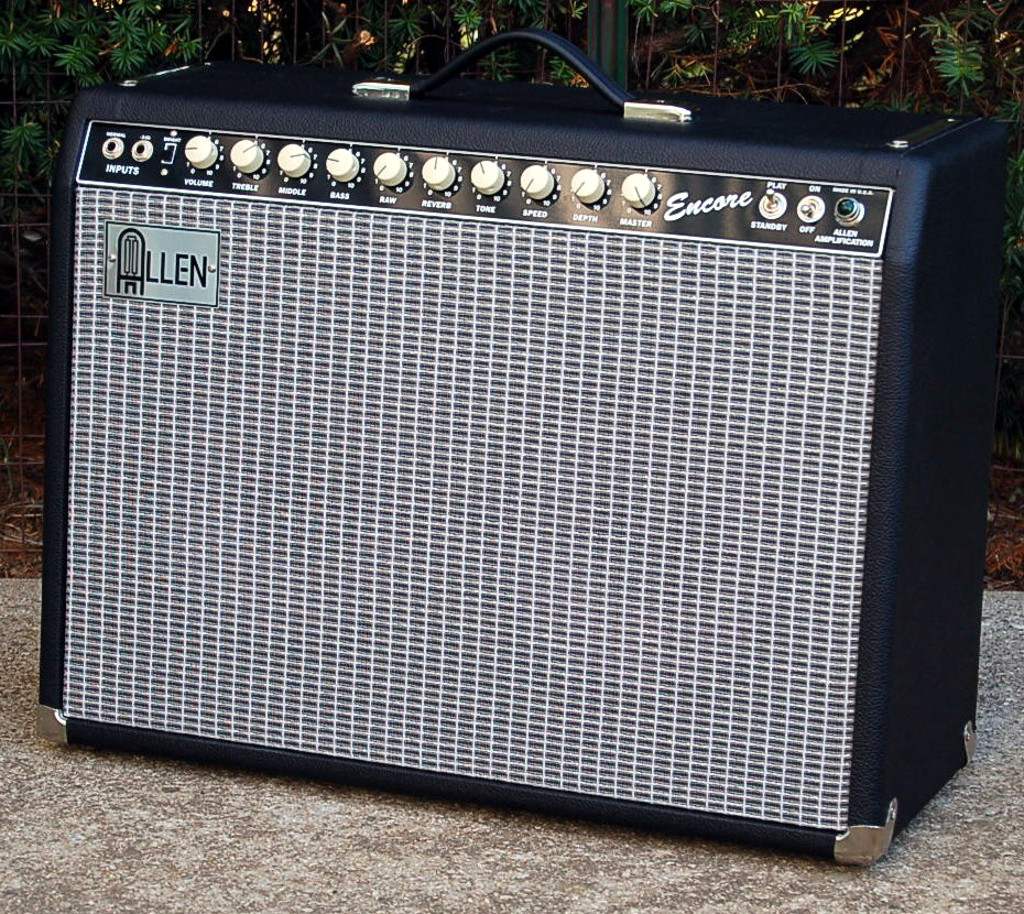

Cabinet	Finger-jointed pine cabinet with black Tolex covering and Black/White/Silver sparkle or black grill cloth. Optional Blond/Wheat, Blond/Oxblood, Brown/Wheat and Tweed/Oxblood coverings available. 1/2" birch plywood floating-type baffleboard and (2) screw-on rear panels. Chrome bottom corners, rubber feet, chrome chassis straps, black-rubber steel-reinforced carrying handle with chrome caps/screws. Leather handle also available.
Speaker(s)	(1) 12" Red, White and Blues, (2) 10" Copperheads or (1) 15" Legend 151 standard.
Special Features	Brown Vibrolux™ tremolo, impedance switch, unique RAW mid/gain boost control, front-panel power switches, master volume, and convenient rear-panel bias measurement jacks.
