Classic 10

10W Classic 10 uses a 6L6 with volume, tone and boost controls.

Specifications

Output Power	10 watts.
Tube Complement	(1) 12AX7 preamp tube and (1) 6L6GC or EL34 power tube.
Class	Class A single-ended with cathode bias.
Equalization	TONE control to cut or boost highs, BOOST switch "ON" thins out bass.
Chassis	Aluminum chassis.
Circuitry	Hand-wired point-to-point with tinned solid-core PVC wiring, G-10 glass epoxy circuit board with brass eyelets. Carbon film resistors, Mallory M150 and CDM silver mica tone capacitors, Switchcraft jacks, Carling switches, and high-quality molded type sockets.
Topology	Loosely based on tweed Princeton 5F2-A™ but with more power, unique boost feature and a solid-state rectifier.
Cabinet	Finger-jointed pine with Birch plywood floating speaker baffle and MDF back panels. Nickel plated bottom corners and glides, strap handle and chassis straps. Many Tolex and grill cloth options available.
Speaker(s)	Eminence Copperhead 8 ohm speaker. Other Eminence speakers available.
Special Features	Cathode biased power tube can be a 6L6GC or an EL34. Unique BOOST switch pumps up the gain for more mids and highs and eliminates the negative feedback for a more Marshal like overdrive tone.

Model	Width	Height	Depth	Weight
1x10 Combo	17"	17"	9"	24 lbs

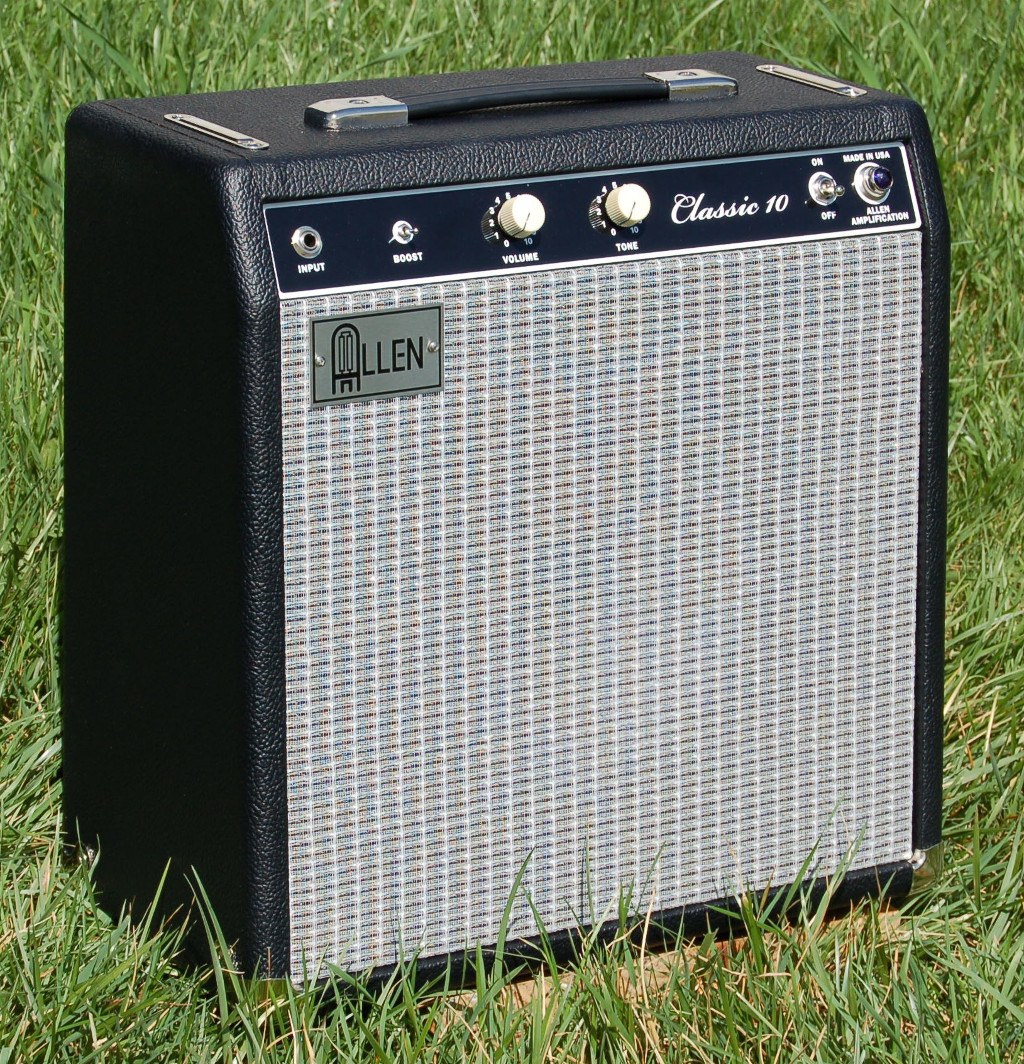

Classic 10 Combo w/black tolex and silver-blue grillcloth

4-9-off - PRS, Clean strumming

Select Configuration

$999

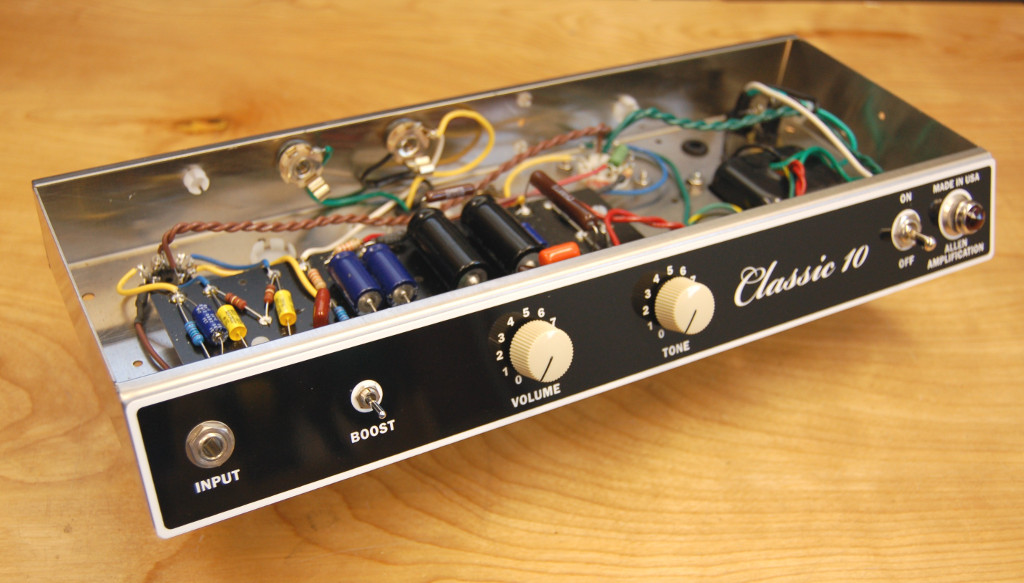

Classic 10 Chassis Only

Other Tolex and grill cloth options available at no extra charge.
