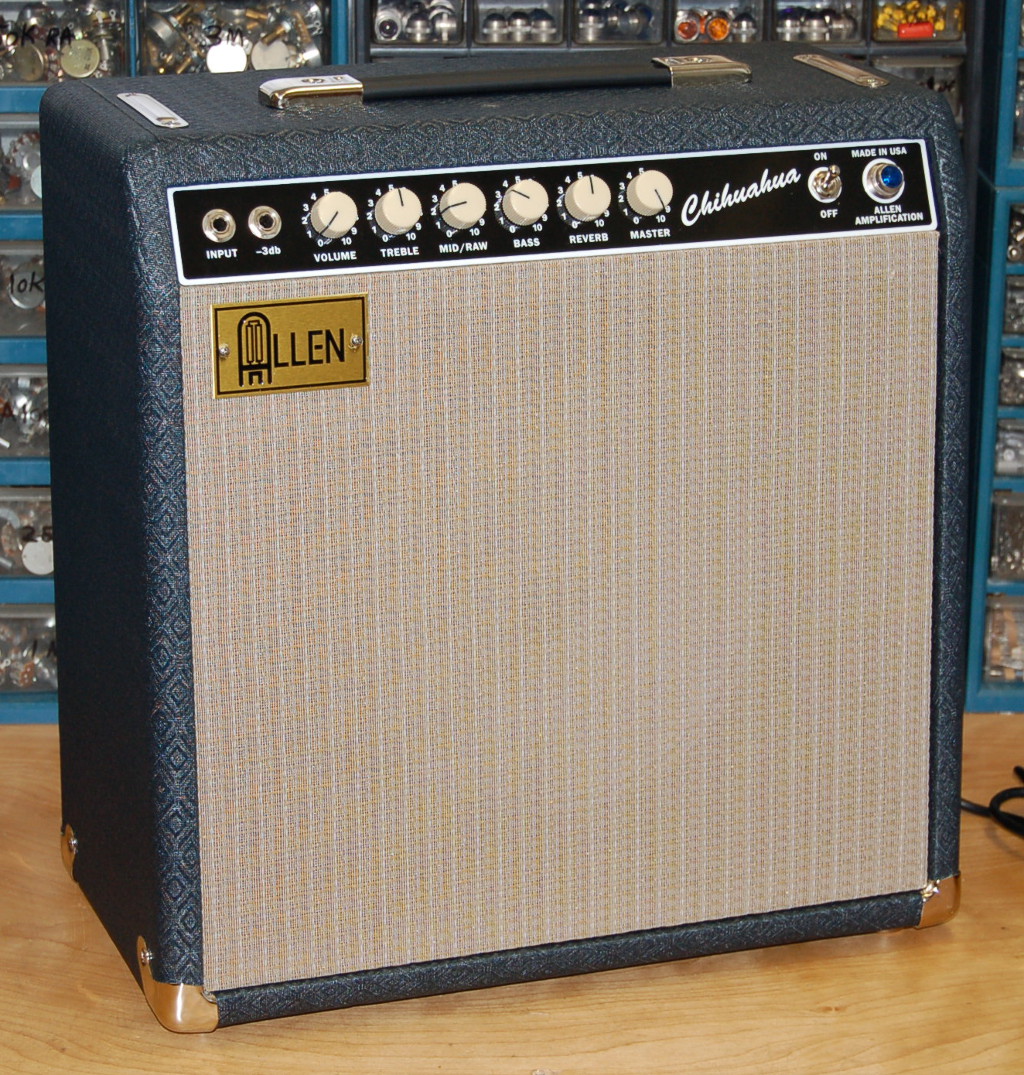

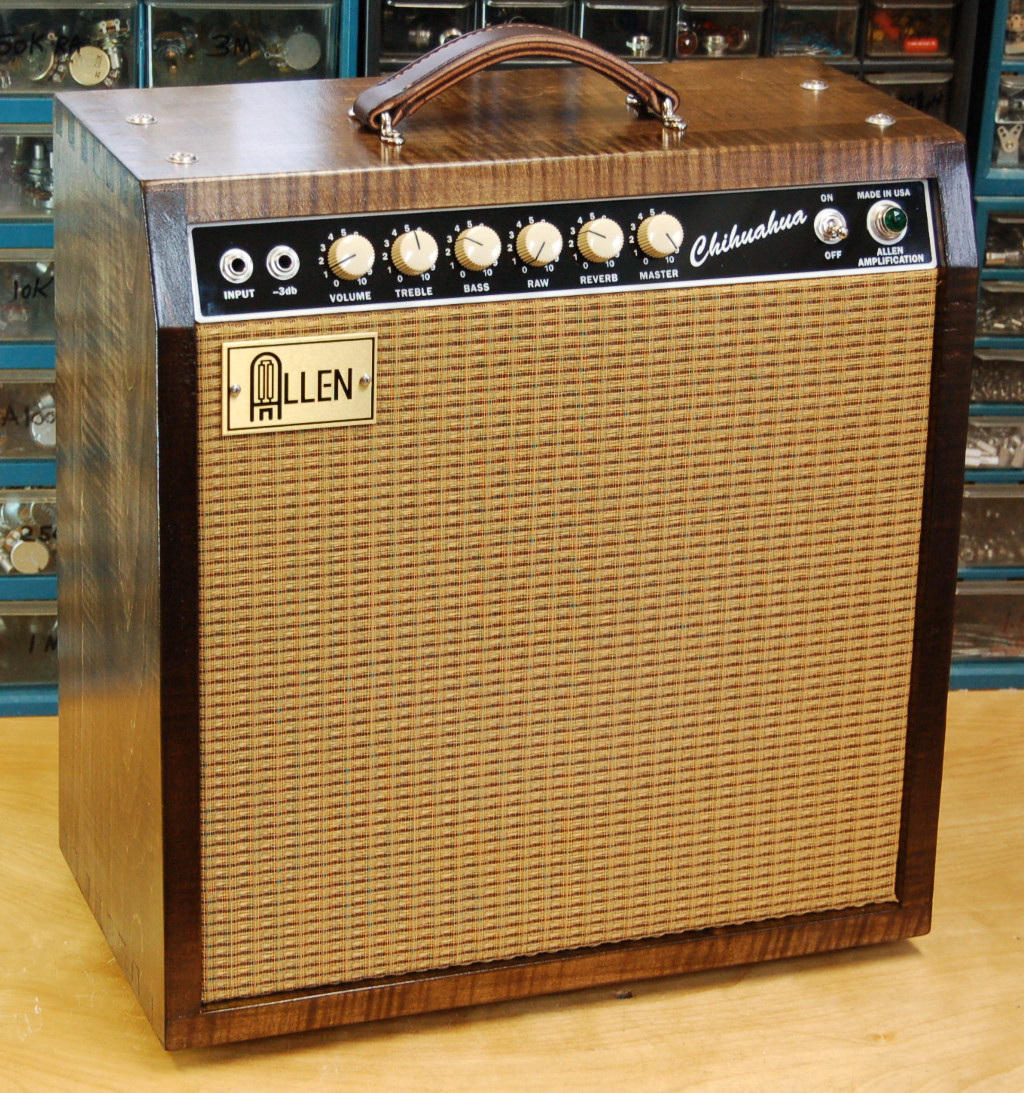

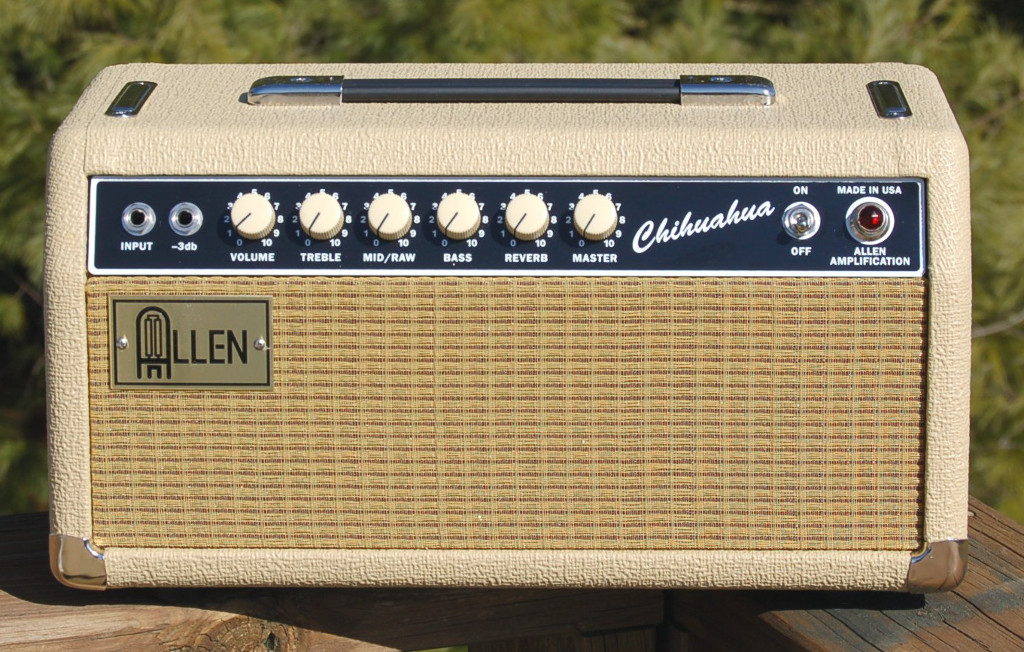

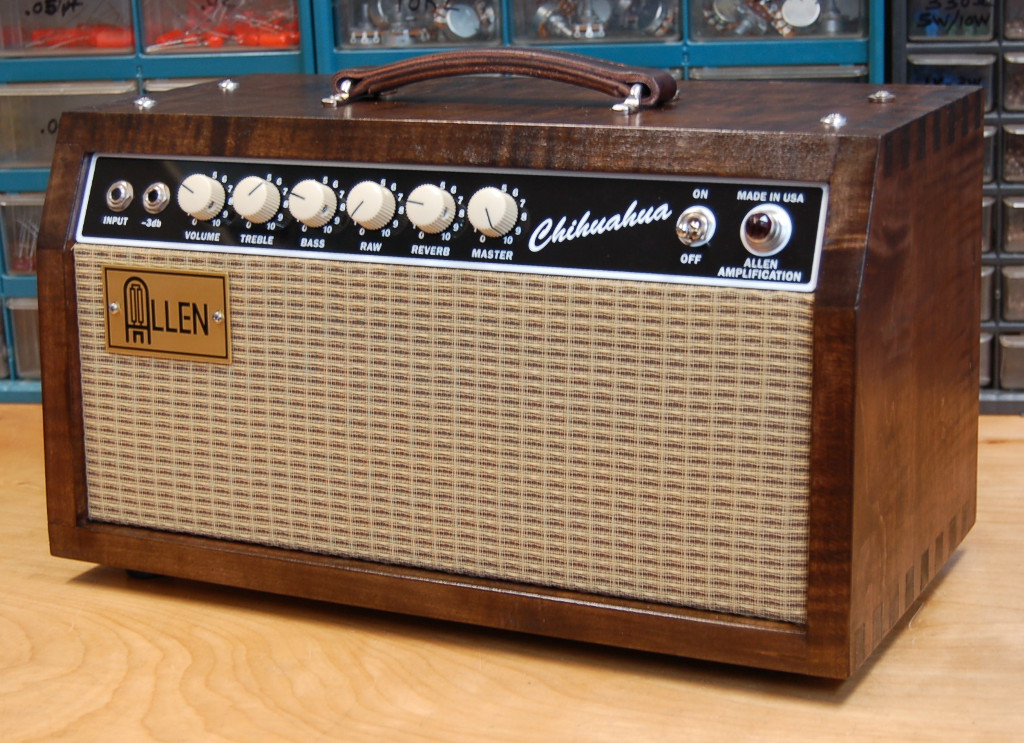

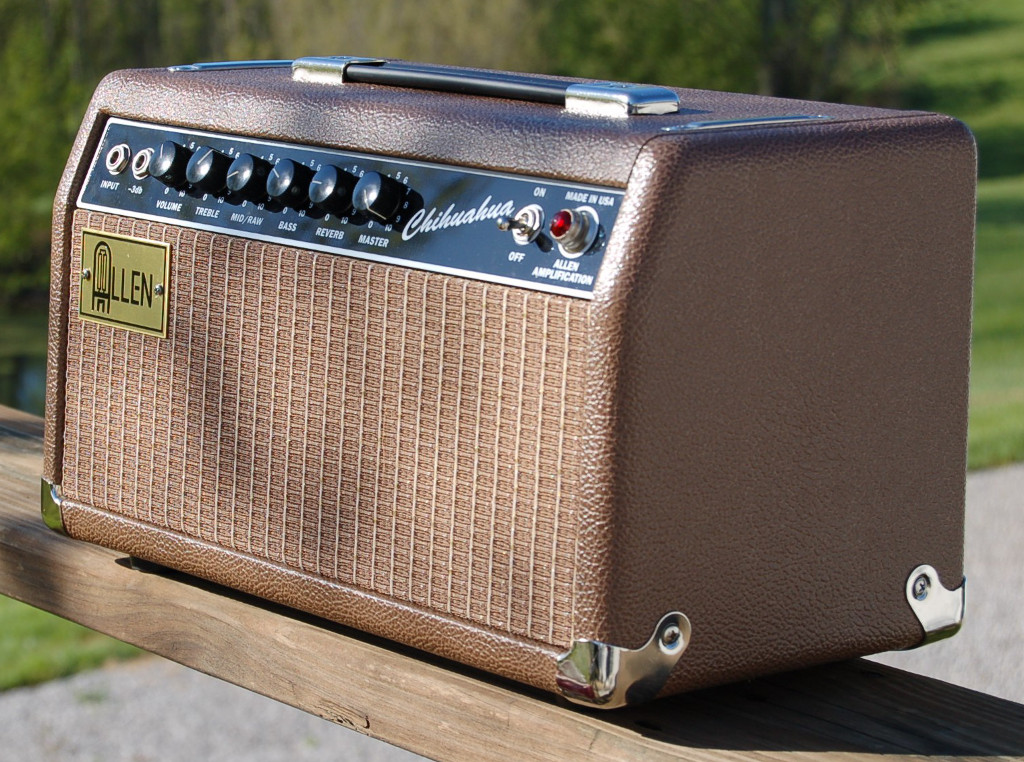

Chihuahua

10W Chihuahua adds a full tone stack and tube driven spring reverb.

Specifications

Output Power	10 watts with a 6L6 power tube or 6 watts with a 6V6 power tube (8 ohm speaker load).
Tube Complement	1 6V6 or 6L6 power tube, 2 12AX7 and 1 12AT7 preamp tube.
Class	Class A single-ended.
Equalization	Treble, Bass, and foot-switchable RAW control.
Reverb	Tube driven spring reverb using the 9" Accutronics tank.
Chassis	Aluminum chassis.
Circuitry	Hand-wired point-to-point with tinned solid-core PVC wiring, G-10 glass epoxy circuit board with brass eyelets. Carbon film resistors, Mallory M150 and CDM silver mica tone capacitors, Switchcraft jacks, Carling switches, and high-quality molded type sockets.
Topology	Loosely based on the black panel Champ™ with AB763ish reverb added. Beefed up transformer set and power supply for use with 6V6/6L6 power tube and addition of a foot-switchable RAW control. Master volume control.
Cabinet	Finger-jointed pine cabinet with Birch plywood baffle and MDF back panels that don't warp. Reinforced black strap handle, bottom chrome corners and chassis straps.

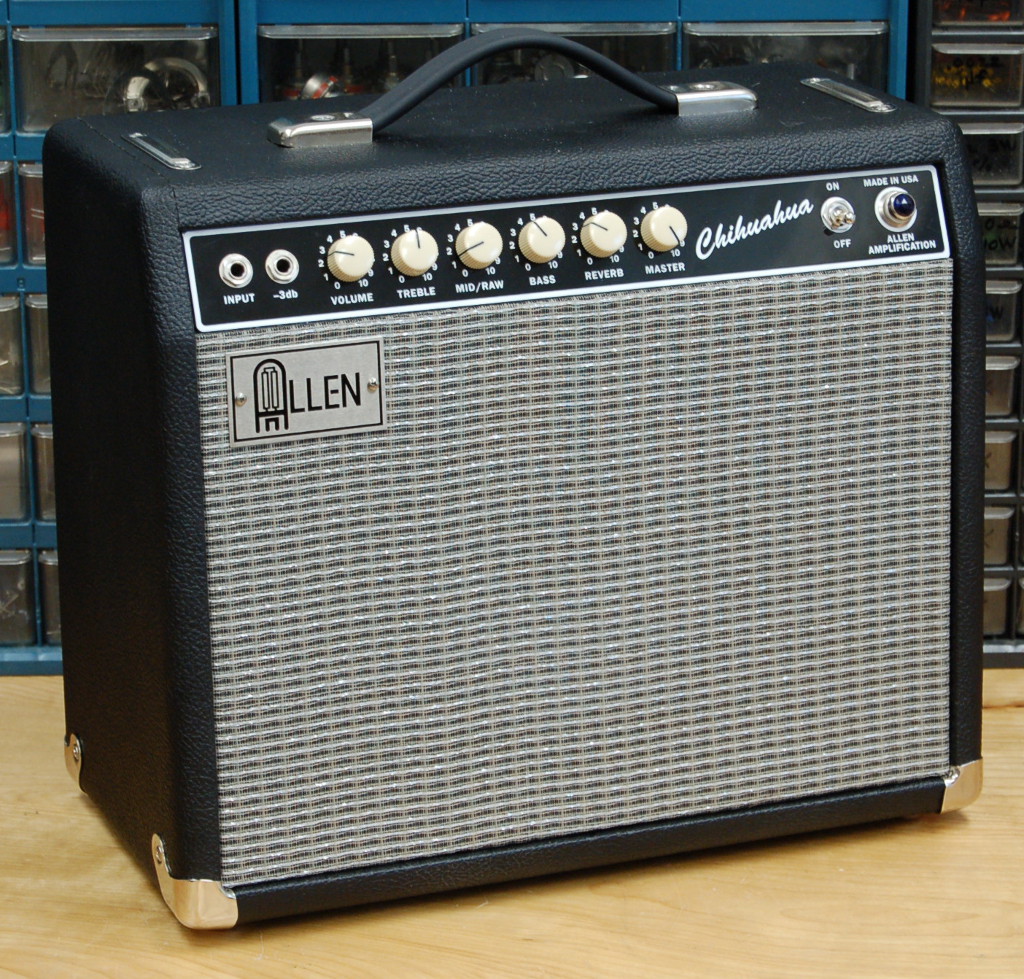

Speaker(s)	WGS G8C for the 1x8, Eminence Copperhead for the 1x10, and Eminence Red, White and Blues for the 1x12.
Special Features	Dual input jacks (normal and -3db), master volume control, tube driven spring reverb using the 9" Accutronics tank, extra gain stage for better overdriven tones and a foot-switchable RAW control to go from blackface scooped mids to thicker 5F1 tweed type tone. Now with a 6V6/6L6 selector switch on back for 6 watts or 10 watts!
