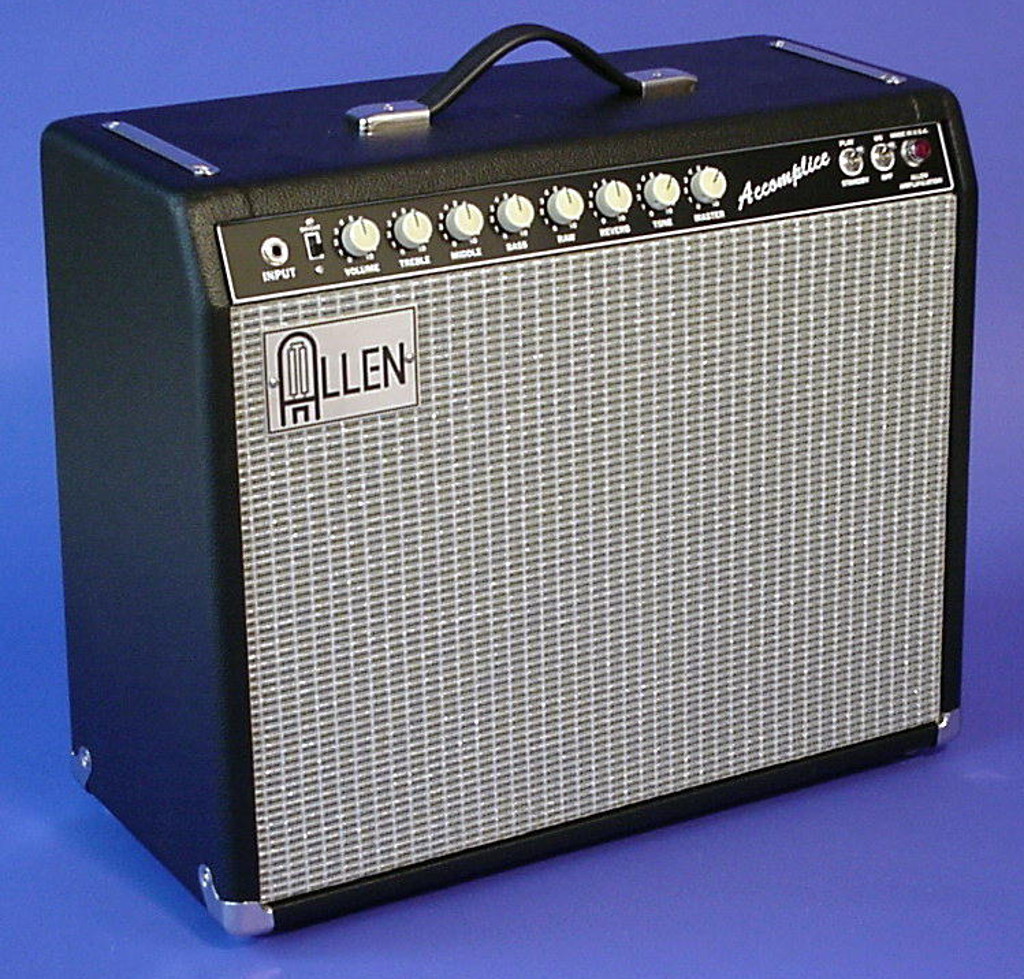

Accomplice

22W/35W Accomplice uses 6V6s or 6L6s with full EQ, reverb, and master vol.

Specifications

Output Power	22W with 6V6s, 35W with 6L6s using a plug-in solid-state rectifier.
Tube Complement	(4) 12AX7, (2) 6V6GT or (2) 6L6GC, and (1) GZ34.
Class	AB push-pull with adjustable fixed bias.
Equalization	Bass, Middle, Treble and RAW controls plus BRIGHT switch.
Reverb	All-tube driven, 3-spring medium delay Accutronics tank in padded reverb bag with shielded cables and TONE control.
Master Volume	Post-driver using dual potentiometer and (4) coupling capacitors.
Chassis	Accomplice features an 18-gauge non magnetic stainless-steel chassis with TIG welded corners, and the Accomplice Jr. features an aluminum chassis.
Circuitry	Hand-wired point-to-point with tinned solid-core PVC wiring, G-10 glass epoxy circuit board with brass eyelets. Carbon film resistors, Mallory M150 and CDM silver mica tone capacitors, Switchcraft jacks, Carling switches, and high-quality molded type sockets.
Topology	Design is loosely based on the black panel Fender Deluxe Reverb™ but without a normal channel or vibrato function. Design is enhanced with Bright switch, middle control, RAW control, Reverb TONE control, master volume, impedance switch, and bias measurement jacks.
Cabinet	Finger-jointed pine with black Tolex covering, black/white/silver sparkle grill cloth, Tolex covered rear screw-on panels, rubber feet, black rubber (steel reinforced) carrying handle with chrome caps and screws.
Speaker(s)	Eminence Red, White and Blues 12" speaker, Eminence Legend 151 15", or (2) Eminence Copperheads 10".
Special Features	Rear-panel bias measurement jacks, RAW mid/gain boost control, bright switch, impedance switch, extension speaker jack, and TONE control for the reverb.

Size & Weight

Model	Width	Height	Depth	Weight
1x12 Combo	22"	18"	10"	42 lbs
2x10 Combo	22"	20"	10"	50 lbs
1x15 Combo	22"	20"	10"	49 lbs
Head	22"	10"	10"	30 lbs

Variants

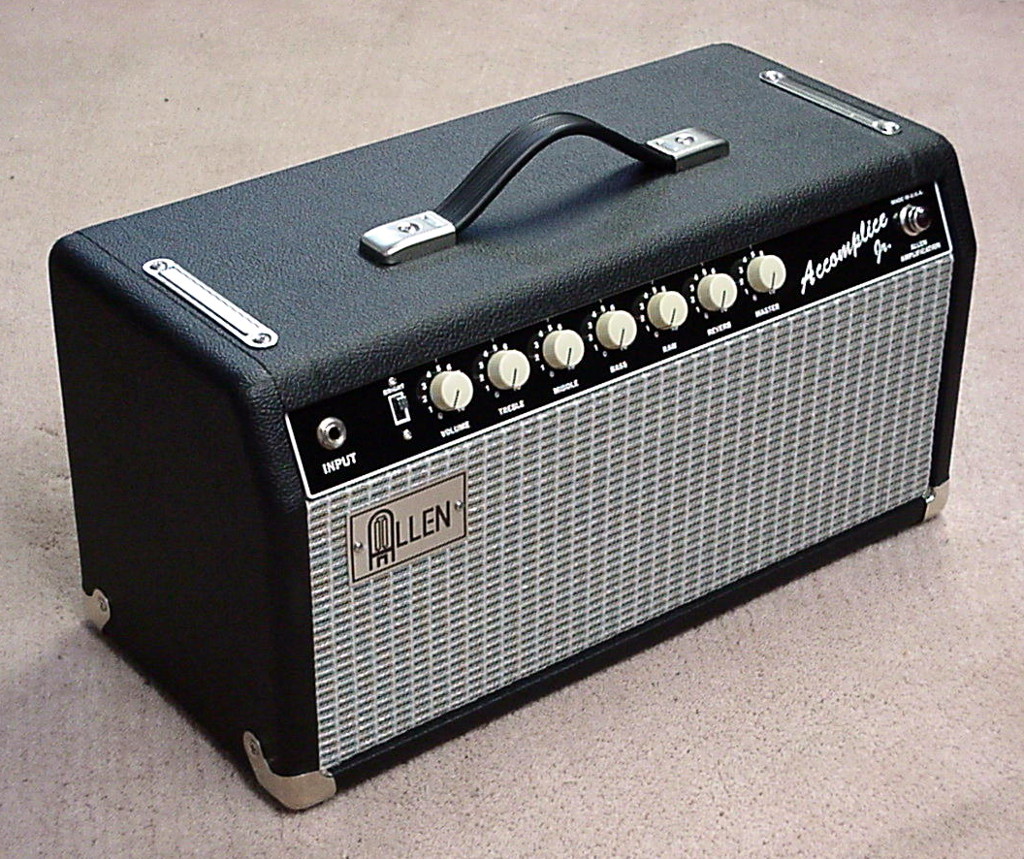

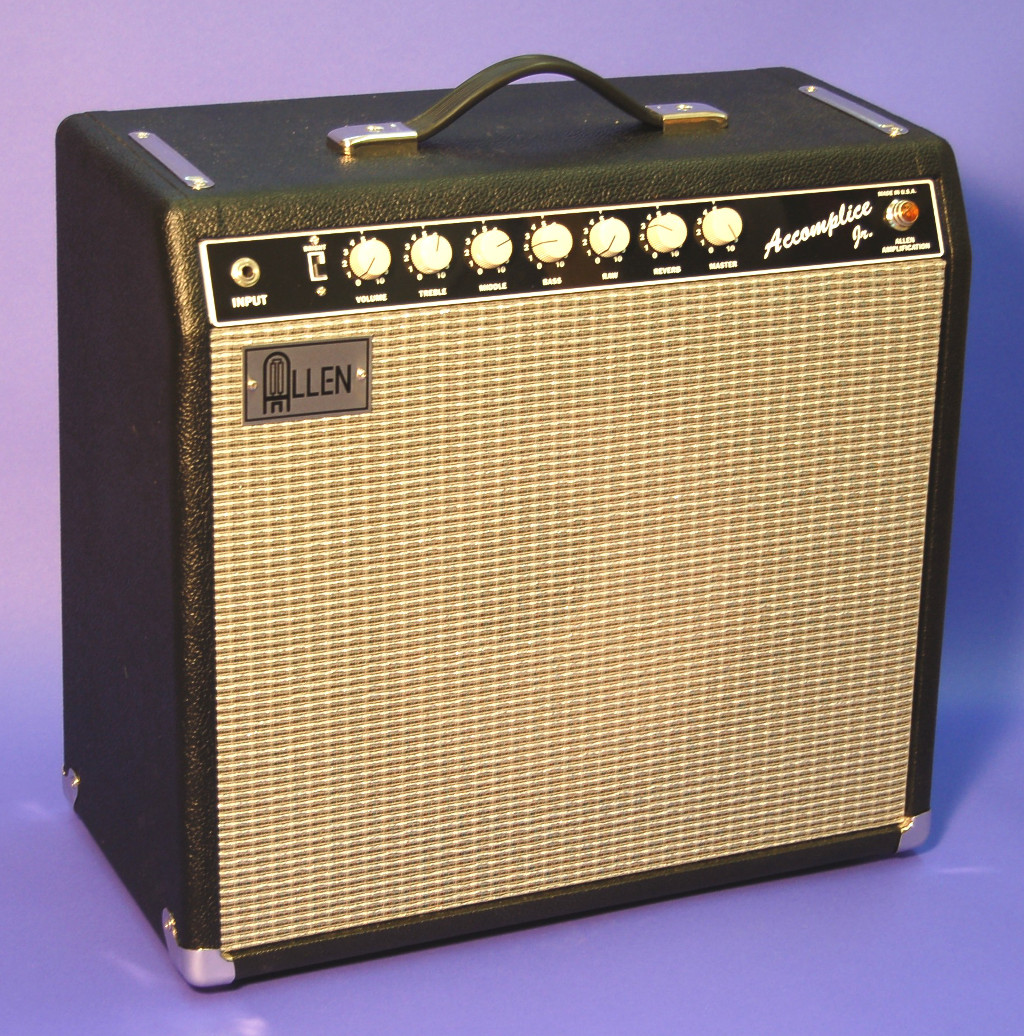

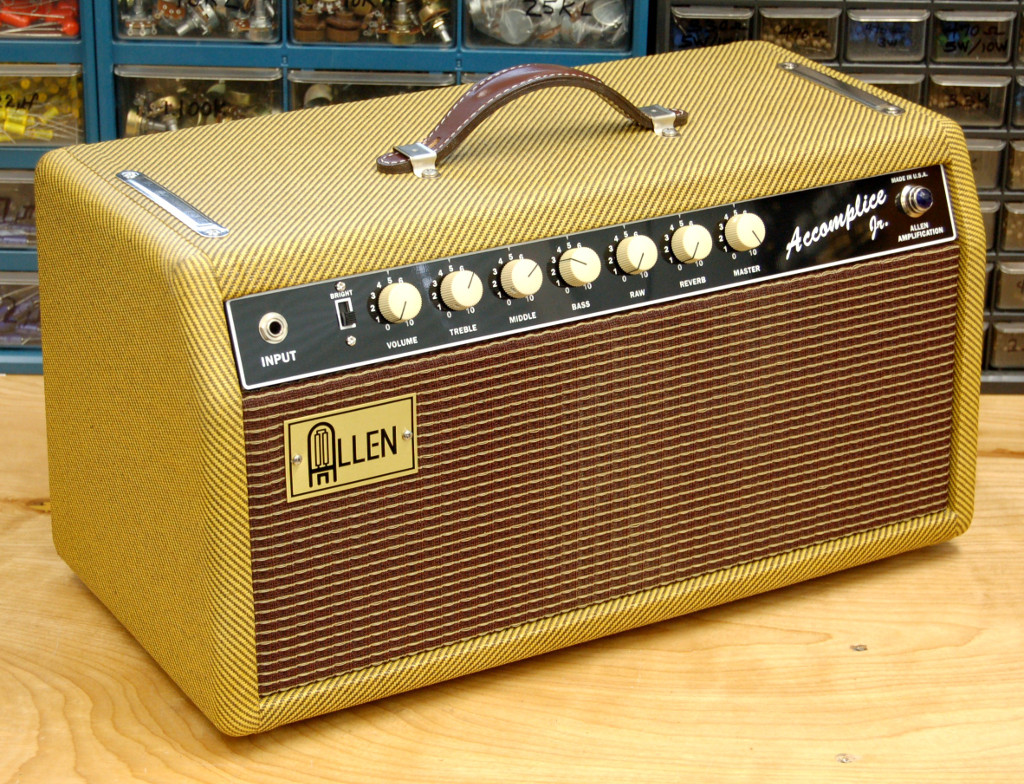

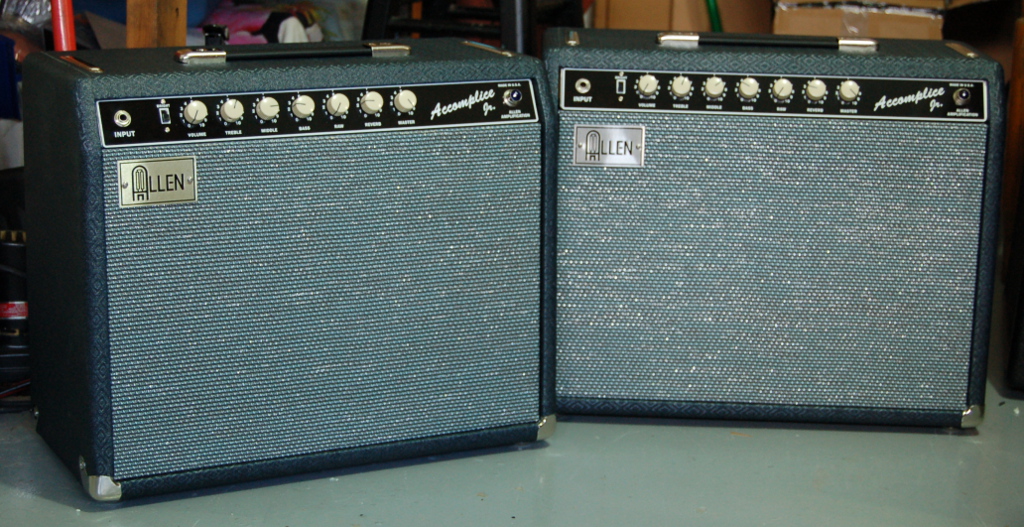

Accomplice Jr.

Same power and features (less the reverb tone control and the impedance switch) in a smaller chassis. The 1x10 combo packs 22W with 6V6s and 35W with 6L6s using a plug-in solid-state rectifier in 35lbs. Eminence Copperhead 10" speaker and long Accutronics reverb tank for big amp tone. Head, 1x10 combo, or 20" tall 1x12 combo. Also available in kit form.

1x10 Combo: 20"W x 16"H x 9-1/4"D, 34 lbs

1x12 Combo: 20"W x 20"H x 9-1/4"D, 38 lbs

Head: 20"W x 9"H x 9-1/4"D, 25 lbs

Read review (PDF) from Vintage Guitar Magazine, June 2006
